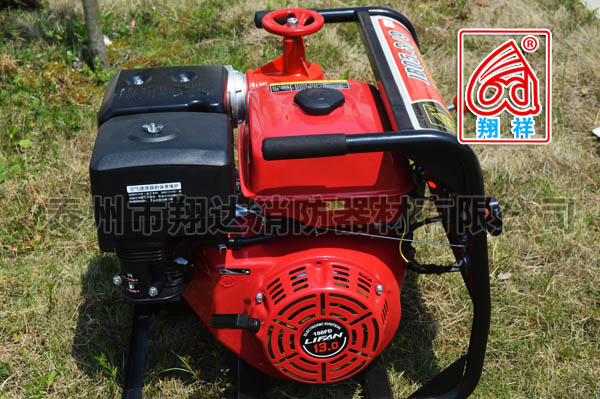

JBQ5.3/9手抬機動消防泵組
汽油機形式：
缸徑×行程：
排量：
|
型號名稱Name |
JBQ5.3/9手抬機動消防泵組Portable Fire Pump Set |
|
發動機型式Engine Type |
四沖程單缸風冷4-Stroke Single-Cylinder With Air-cooled |
|
額定功率Power Output |
7.2KW |
|
啟動方式Starting Model |
電啟動/自回式手拉繩啟動 Electric/Recoil |
|
引水方式Suction Model |
旋片真空泵Vacuum Pump With Rotaional Piece |
|
吸深Suction Height |
≥7m |
|
大流量Max Flow Rate |
50T/H |
|
額定流量Rated Flow |
32.5T/H |
|
額定壓力Rated Power |
≥0.53Mpa |
|
揚程Lift |
56m |
|
進水口徑Inlet Diameter |
65mm |
|
出水口徑Outlet Diameter |
65mm |
|
引水時間Time |
≤5s |
|
質量N.W |
60kg |
|
體積Volume |
520×580×520mm |
|
發動機可選Engine：本田Honda/國產 |
|
